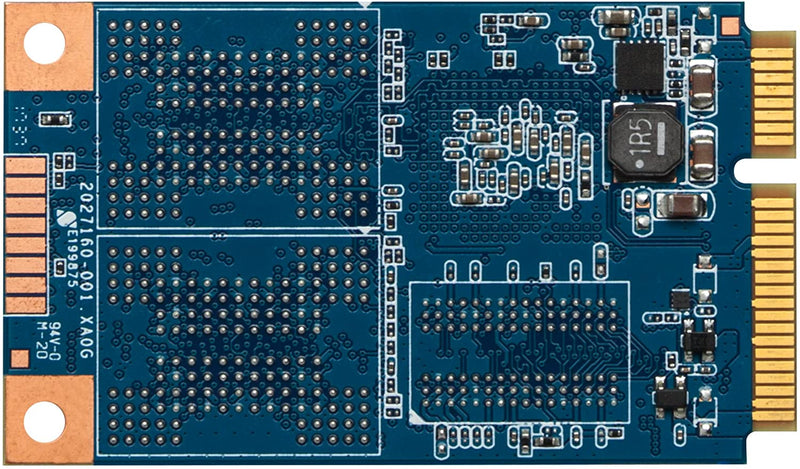

KINGSTON Digital SUV500MS/480G 480GB SSDNOW UV500 MSATA 3.5 Internal Solid State Drive

Form factor

M.2 2280/mSATA

Interface

SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacities1

120GB, 240GB, 480GB, 960GB, 1.92TB

Controller

Marvell 88SS1074 Controller

NAND

3D TLC

Encryption

Encryption Support (AES 256-bit)

Sequential Read/Write2

120GB — up to 520/320MB/s

240GB — up to 520/500MB/s

480GB — up to 520/500MB/s

960GB — up to 520/500MB/s

1.92TB — up to 520/500MB/s

Maximum 4K Read/Write2

120GB — up to 79,000/18,000 IOPS

240GB — up to 79,000/25,000 IOPS

480GB — up to 79,000/35,000 IOPS

960GB — up to 79,000/45,000 IOPS

1.92TB — up to 79,000/50,000 IOPS

Power Consumption

0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write

Dimensions

100.1mm x 69.85mm x 7mm (2.5”)

80mm x 22mm x 3.5mm (M.2)

50.8mm x 29.85mm x 4.85mm (mSATA)

Operating temperature

0°C~70°C

Storage temperature

-40°C~85°C

Weight

120GB — 480GB — 41g (2.5”)

960GB — 57g (2.5”)

1.92TB — 52g (2.5”)

120GB — 6.6g (M.2)

240GB — 6.7g (M.2)

480GB — 7.7g (M.2)

960GB — 7.8g (M.2)

120GB — 6.2g (mSATA)

240GB — 480GB — 6.7g (mSATA)

Vibration operating

2.17G Peak (7–800Hz)

Vibration non-operating

20G Peak (10–2000Hz)

Life expectancy

1 million hours MTBF

Warranty/support3

Limited 5-year warranty with free technical support

Total Bytes Written (TBW)4

120GB — 60TB

240GB — 100TB

480GB — 200TB

960GB — 480TB

1.92TB — 800TB
