1U rackmount, 8x Gigabit Ethernet, 2xSFP+ cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 41.5mpps fastpath, Up to 28Gbit/s throughput, RouterOS L6, Dual PSU.
Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance.

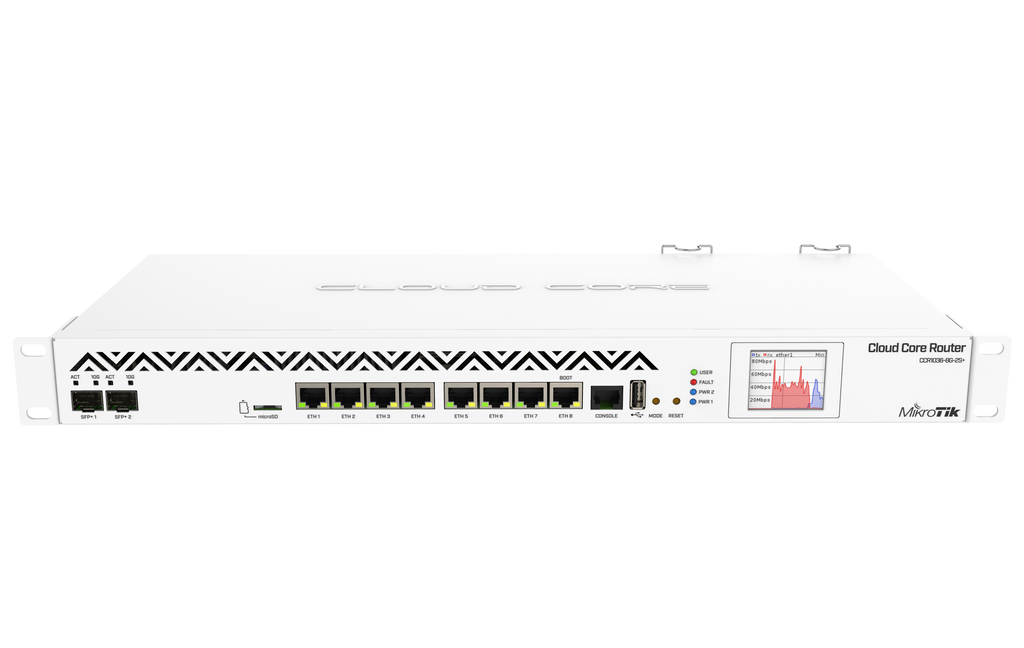

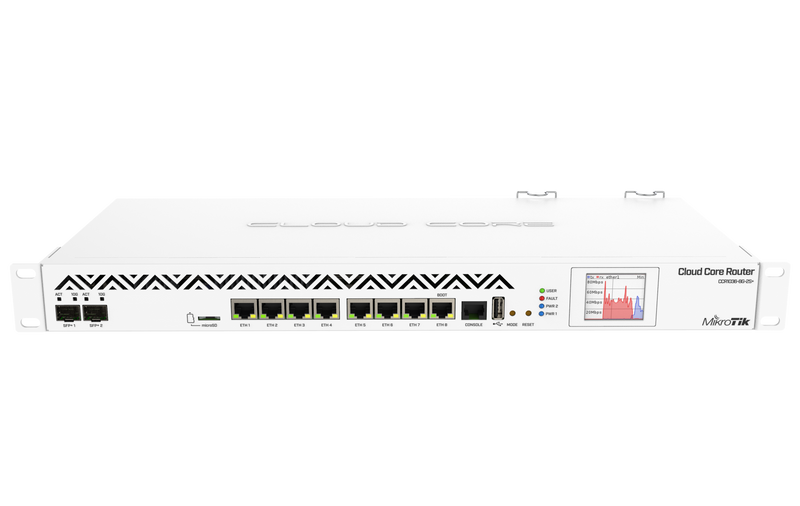

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and serial console port.
The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 PCIe 4x slot, full size USB slot and dual PSU for redundancy!
Supports both SFP (1.25G) and SFP+ (10G) modules.
|CPU core count||36|
|CPU nominal frequency||1.2 GHz|
|Dimensions||443 x 193 x 44 mm|
|Size of RAM||4 GB|
|Storage size||1 GB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-20°C to 60°C|
|IPsec hardware acceleration||Yes|

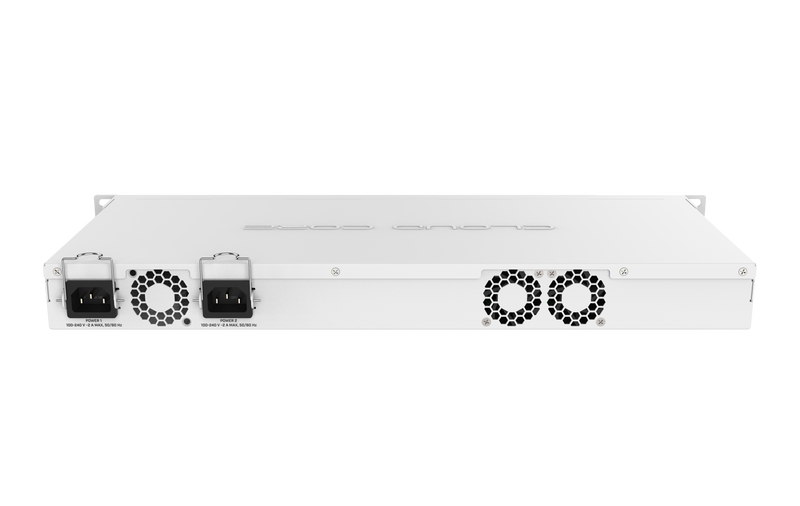

|Number of AC inputs||2|
|AC input range||100-240|
|Max power consumption||73 W|
|Cooling type||2 fans|
|10/100/1000 Ethernet ports||8|
|Memory card type||microSD|
|Serial console port||RJ45|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
|Number of M.2 slots||1|
|CPU temperature monitor||Yes|
|PCB temperature monitor||Yes|
Certification & Approvals
|Certification||CE, EAC, ROHS|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
