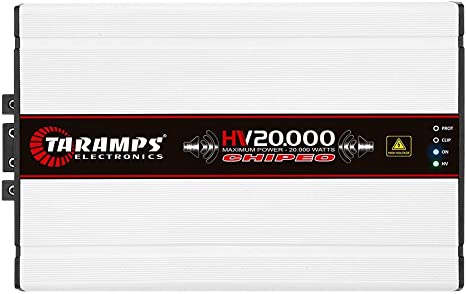

- strength, income and performance are some of the synonyms of this amplifier module, it has a maximum power of 20.000 watts rms at 0.5 ohm, thermal protection and anti short circuit, it is powered by batteries in series.
- member of a unique line in its category, delivering extremely high power in medium and large automotive sound systems. emphasis for subwoofer to high midrange, with high tone performance and sound quality.
- operation class (pt) classes d, number of channels 01, maximum power @ 164 vdc - 0.5 ohm: 20,000w rms, input sensitivity 330mv (level 100%) @ 0.5 ohm, signal to noise ratio >98db, frequency response 10hz - 10khz (1db)
- input impedance 22k ohms, protection system short-circuit to output / short on output compared to gnd, low impedance at output, high/low supply voltage and thermal protection, min. supply voltage 100 vdc, maximum power supply voltage 190 vdc
- consumption at rest 150 ma, maximum music consumption 67 a, maximum consumption in sinusoidal signal 134 a, dimensions (h x w x d) 8.98-in x 2.52-in x 14.09-in, weight 7.92lb
