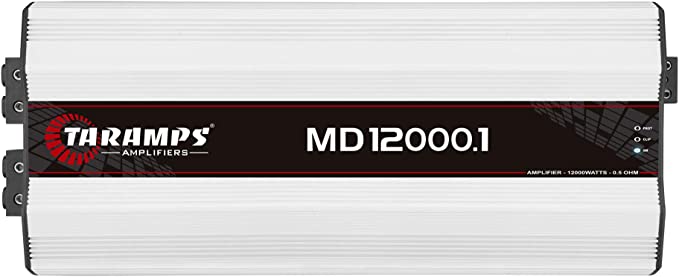

- MD 12000.1 - 0.5 ohm amplifier is developed with the highest technology and performance for automotive sound systems, in white color, to make your system more sophisticated, It is mono, with a single channel with a maximum power of 12.000 Watts RMS.
- It is a FULL RANGE amplifier, playing all frequencies in the right measure for you, Operation class Class D, Number of Channels 01, Maximum power @ 12.6 VDC - 0.5 OHM: 12,000W RMS @ 12.6 VDC - 1 OHM: 7,200W RMS
- Input Sensitivity 220mV, Signal to Noise Ratio >95dB, Frequency Response 10 Hz ~5 kHz (-3dB), Crossover high pass (HPF) 10 Hz ~90 Hz (-12dB/8th) Variable, Crossover low pass (LPF) 90 Hz ~5 kHz (-12dB/8th) Variable, Bass Boost Freq.: 35 Hz ~55 Hz
- Boost: 0 ~10dB, Efficiency 79%, Input Impedance 15K ohms, Output Impedance 0,5 ohm, Protection system Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection
- Maximum Power Supply Voltage 16VDC, Consumption at rest 3.6A, Maximum music consumption 602.5A, Maximum consumption in sinusoidal signal 1,205A, Dimensions (H x W x D) 8.976 x 2.755 x 21.653 inches (228 x 70 x 550mm), Weight 17.526 lbs (7.95 kg)
